Traffic Spikes Secure Lane
Barrier Gate Operators
Door King 1602 Barrier Gate
Door King 1601 Barrier Gate

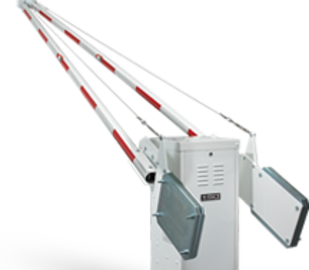

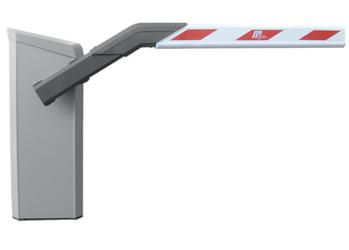

Magnetic Autocontrol Micro Drive Series
Up to a 33 ft boom arm
A parking facility is only as good as its barrier. Modern barriers require innovative and future-oriented engineering as well as environmentally compatible and energy-saving technology. Magnetic.Parking barriers meet these requirements completely: While the MHTM™ MicroDrive and the MGC control secure decisive advantages for you and optimise the benefit of your parking facility, the housing and the VarioBoom do not leave anything to be desired.

Barrier Gate Operator - Up to a 14 ft boom arm
The 1601 operator is designed for single lane (14 ft. max) vehicular traffic control in high traffic commercial and industrial applications. The 1601 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
Barrier Gate Operator - Up to a 27 ft boom arm
The 1602 operator is designed for traffic lanes up to 27-feet wide in low use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The 1602 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
Barrier Gate Arm Operators are used to control access and enforce an entry only or an exit only lane in parking lots or road ways.  The barrier gate arms can cover a typical 8 foot wide lane and up to a 33 foot wide lane.
Call for pricing on a Barrier Gate Operator today!

​(520) 780-9751 or

How wide is the lane?
Will you need a keypad, card reader or other control device?

Motorized Traffic Spikes
Barrier Gate Operator with Traffic Spikes, known as a Motorized Traffic Control System.  - 9 feet to 27 feet

Barrier Gate Operator with integrated spikes.  Controlled by an open and close button station, card reader system, telephone entry or other type of access control product.  A automated traffic spike system is used where a secure traffic lane is needed.  Sometimes a barrier gate arm is not enough to secure a lane.  When traffic spikes are used with the gate arm you have a much more secure lane.  The motor does the work.  When access is granted the arm will rise and the spikes will retract, allowing entry or exit.  When the barrier arm is lowered the spikes return to the upright position and the lane is now protected from unwanted passage.  Please click here for more information.
twitter
Click On A Photo for more information !
(520)780-9751
Call Christine for a price quote today
Fast Price Quotes!
(520) 780-9751
christine@secure-lane.com
gate hardware catalog, gate hinges, gate hardware
www.barriergatearm.com
Parking Pro Barrier Gate Arm Data Sheet

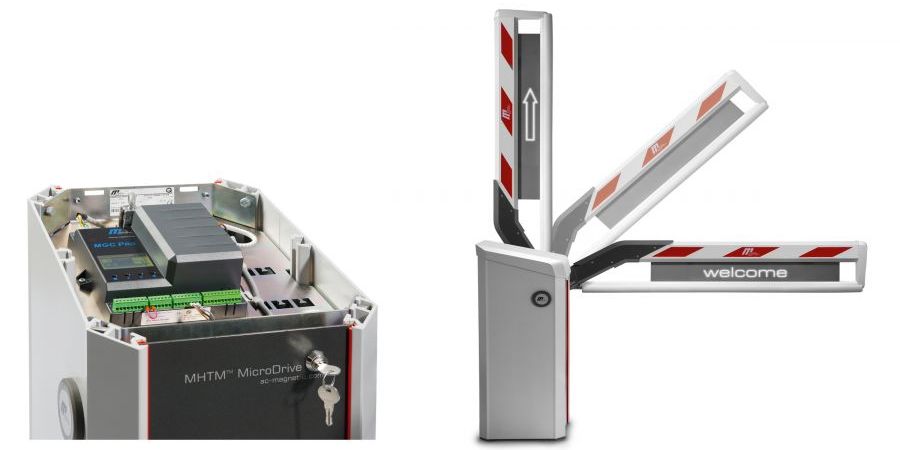

Magnetic Auto Control MHTM Micro Drive Barrier Gates
Click on a product to see more!
MANUAL RISING GATE BARRIERS

14000 Series – Available in 12’, 16’, & 20’

  • Lightweight round aluminum arm
  • Hinged Pivot assembly
  • Factory Balanced Counter Weight - Non Adjustable
  • Can be padlocked in the up or down position
  • Red & white striped (other colors available)
  • Choice of surface mount flange or in ground set


Alabama · Alaska · Arizona · Arkansas · California · Colorado · Connecticut · Delaware · Florida · Georgia · Hawaii · Idaho · Illinois · Indiana · Iowa · Kansas · Kentucky · Louisiana · Maine · Maryland · Massachusetts · Michigan · Minnesota · Mississippi · Missouri · Montana · Nebraska · Nevada · New Hampshire · New Jersey · New Mexico · New York · North Carolina · North Dakota · Ohio · Oklahoma · Oregon · Pennsylvania · Rhode Island · South Carolina · South Dakota · Tennessee · Texas · Utah · Vermont · Virginia · Washington · West Virginia · Wisconsin · Wyoming
Copyright © 2013 Secure Lane LLC, All Rights Reserved
Contact the webmaster at: christine@secure-lane.com
3618 S. Calexico Ave. Tucson, AZ 85730 USA
(520)780-9751
Manual Lift Barrier Gate Arm Model 14000
Fast Price Quotes!
(520) 780-9751
christine@secure-lane.com
Manual Gate Barrier Arm
♦High Quality Steel Construction

♦Powdered Coated Safety Red or Bright Blue (custom colors available)

♦Lightweight Aluminum Arm - Powdered coated white

♦A 10 Year Red and White Reflective Conspicuity Tape on both sides/full length of the barrier arm for maximum visibility

♦Counter Balanced for Easy Lift - Adjustable counter weight

♦Quiet Stop Rubber Bumper System, bolts on and is easily replaced when needed
  Cushions the stop when raising and when lowering the boom arm

♦Chemical and Weather Resistant Foam Rubber Grip Comfort Handle

♦Locking Hasp that accepts your padlock in both  the Up and Down Position

♦Choice of Surface Mount Flange or In Ground
  ♦ Prevent vehicles from proceeding through an entry or exit.

  ♦No electricity source is required at the site.

  ♦Counter balanced technology eases the effort required for lifting the gate arm.

  ♦ Barrier Arm can be locked by padlock in the up or down positions for added security and safety.

  ♦Easy to install with the pre drilled mounting plate. Simply bolt to the roadway or a concrete pad

  ♦In Ground version is also available.




​Model SL-LB
Model SL-LB in a 12 ft, 16 ft, 20 ft, 25 ft, 30 ft, 35 ft
​Model SL-LB
Model SL-LB in a 12 ft, 16 ft, 20 ft, 25 ft, 30 ft, 35 ft
Visit our other site www.barriergatearm.com for more info
Need a 12 footer? Maybe a 20 footer?

How about a 30 footer?

Hey, guess what?  We even have a 35 footer.

All Models 25 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable, HD stainless steel hook & eye for tensioning, adjustable eyebolt with hex nut and cable clamps. Cable Truss Support can also be added to a 20 ft unit if desired

We have you covered!!!

Support Post or Pendulum Support is required for arms 20 feet and over

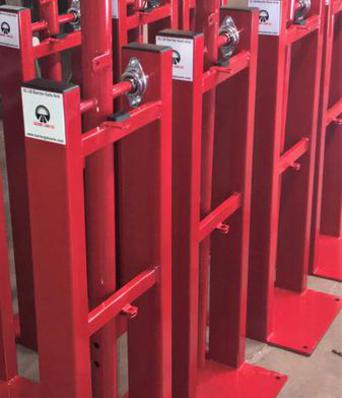

  •  Heavy Duty Steel Construction (all welding by AWS Certified Welders)
  •  Round Aluminum Arm is Powder Coated White and has an 11" Red / 7" White DOT-C2 ORALITE (Reflexite) Reflective Conspicuity Tape on both sides/full length of the barrier arm. 10 Year Tape
  • 42" Tall (custom sizing is available)
  • Standard Color is Safety Red or Bright Blue.  Other color choices are available for an affordable "upgrade fee"
  • Surface Mounted (you may also choose an in ground mount for the same price)
  • 10" X 10" X 3/8" Base plates - pre drilled for surface fixing
  • Adjustable Weights for a perfect counter balanced easy operation
  • Barrier Arms are affordable and easily replaced.  Just call, order and we will ship to you

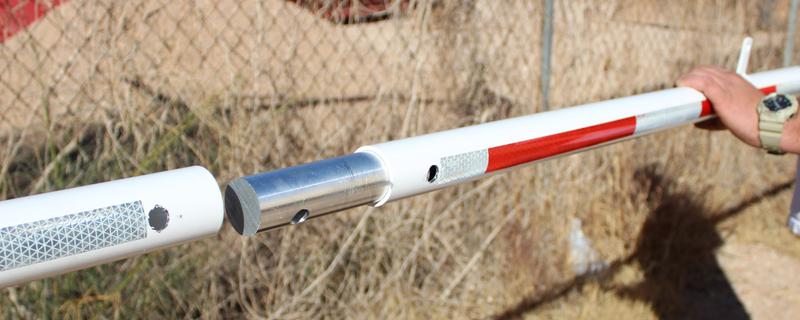

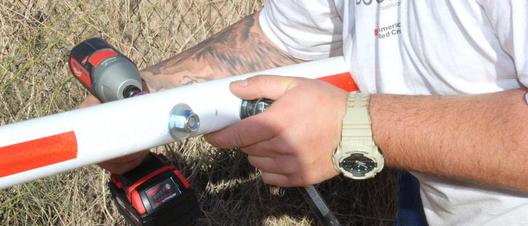

  • Barrier Arms Longer than 12 feet - Arm Sections are Sleeved together with a solid Aluminum tube insert and secured with bolts, the sleeve is perfectly machined to fit snug so there is no movement within the sleeved arm sections and the barrier arm is the same diameter from end to end

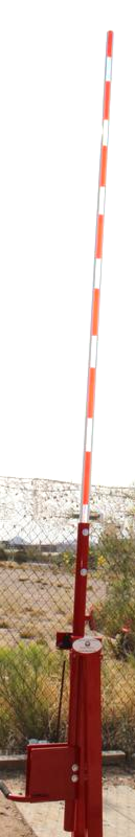

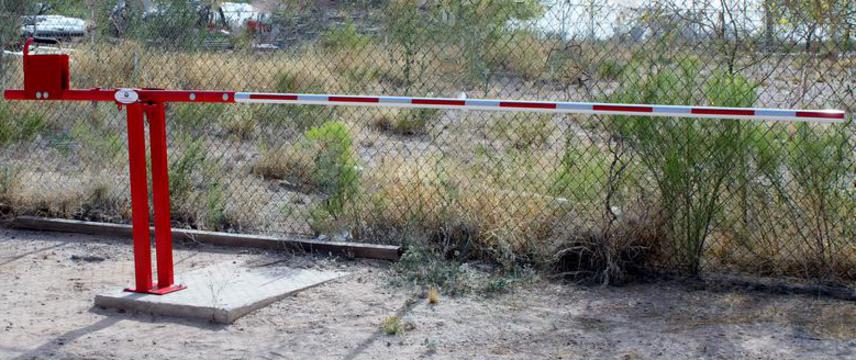

Manually Operated Rising Barrier Gate Arm

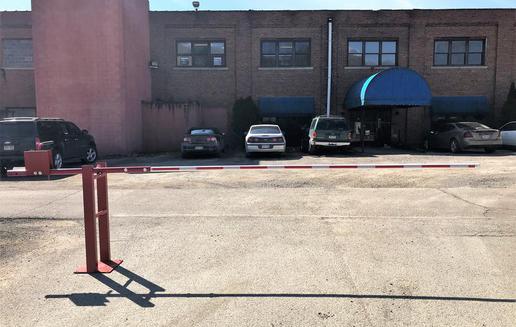

MANUAL LIFT BARRIER GATE with ALUMINUM ARM

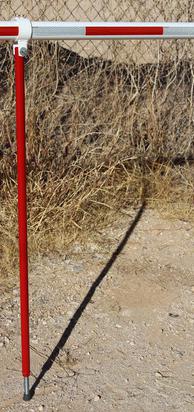

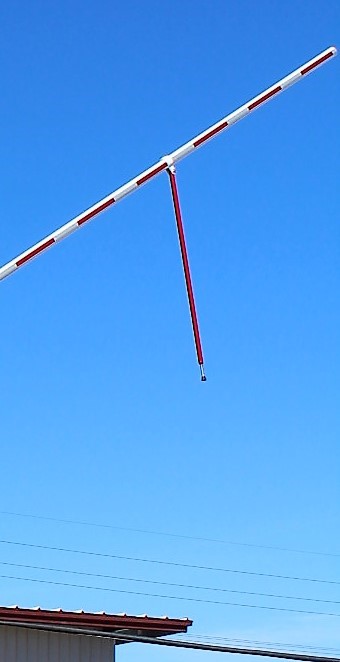

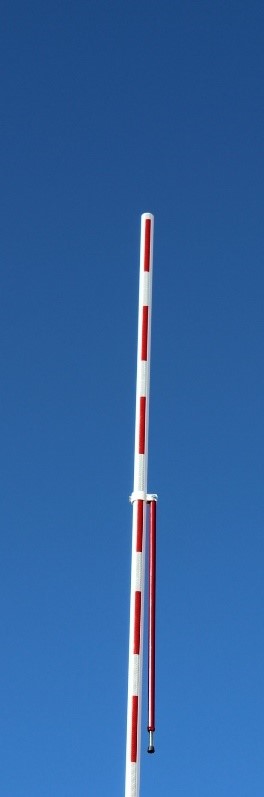

Our Pendulum Support Posts are adjustable.

Barrier Arm Length Available in 12', 16' & 20', 25',30' and 35'
A pendulum support or receiving tip support post is required for arms 20 ft and over.
All Models 25 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable, HD stainless steel hook & eye for tension, adjustable eyebolt with hex nut and cable clamps. Cable Truss Support can also be added to a 20 ft unit if desired
We ship anywhere you need it to go.  USA or Worldwide!
Tip Receiving Resting Support Post
<a href="http://www.apple.com/quicktime/download/">Quicktime Required</a>
Quicktime Required

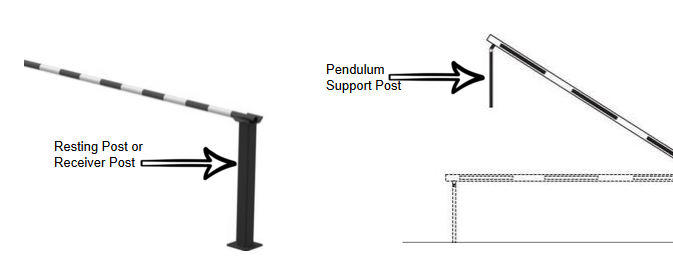

A Pendulum Support Post or a Tip Receiving Post is Required on  barrier arms 20 feet and over
A Pendulum Support Post or a Tip Receiving Post is Required on  barrier arms 20 feet and over
