Traffic Spikes Secure Lane
MANUAL RISING GATE BARRIERS

14000 Series – Available in 12’, 16’, & 20’

  • Lightweight round aluminum arm
  • Hinged Pivot assembly
  • Factory Balanced Counter Weight - Non Adjustable
  • Can be padlocked in the up or down position
  • Red & white striped (other colors available)
  • Choice of surface mount flange or in ground set


Alabama · Alaska · Arizona · Arkansas · California · Colorado · Connecticut · Delaware · Florida · Georgia · Hawaii · Idaho · Illinois · Indiana · Iowa · Kansas · Kentucky · Louisiana · Maine · Maryland · Massachusetts · Michigan · Minnesota · Mississippi · Missouri · Montana · Nebraska · Nevada · New Hampshire · New Jersey · New Mexico · New York · North Carolina · North Dakota · Ohio · Oklahoma · Oregon · Pennsylvania · Rhode Island · South Carolina · South Dakota · Tennessee · Texas · Utah · Vermont · Virginia · Washington · West Virginia · Wisconsin · Wyoming
twitter
Copyright © 2013 Secure Lane LLC, All Rights Reserved
Contact the webmaster at: christine@secure-lane.com
3618 S. Calexico Ave. Tucson, AZ 85730 USA
(520)780-9751
Model 14000 by Liftmaster
Available in 12 ft, 16 ft and 20 ft
Arms 16 ft and up require support post

(520)780-9751
Call Christine for a price quote today
Fast Price Quotes!
(520) 780-9751
christine@secure-lane.com
Manual Gate Barrier Arm
♦High Quality Steel Construction

♦Powdered Coated Safety Red (custom colors available)

♦Lightweight Aluminum Boom Arm - Powdered coated white with a 10 Year Red and White Reflective Conspicuity Tape on both sides/full length of the barrier arm for maximum visibility

♦Counter Balanced for Easy Lift - Perfectly balanced for length of arm ordered

♦Quiet Stop Rubber Bumpers, bolts on and is easily replaced when   needed Cushions the stop when raising and when lowering the boom arm

♦Chemical and Weather Resistant Foam Rubber Grip Comfort Handle

♦Locking Hasp that accepts your padlock in both the Up and Down Position

♦Choice of Surface Mount Flange or In Ground
www.barriergatearm.com
​Model SL-LB
Secure Lane Lift Barrier Arm

Manual Lift - Rising Barrier Gate Arm

Affordable & Easy to Install

Control Your Vehicle Access Entries & Exits
Model SL-LB in a 12 ft, 16 ft, 20 ft, 25 ft, 30 ft, 35 ft
Visit our other site
www.barriergatearm.com for more info

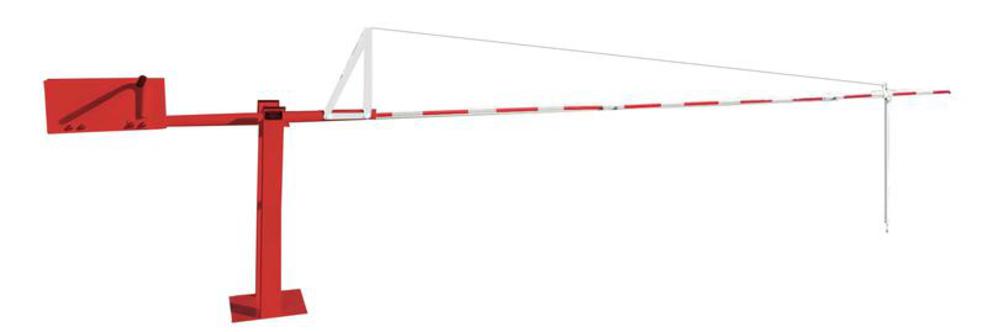

All Models 25 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable and custom made coupling clamp.  Cable Truss Support can also be added to a 20 ft unit if desired

Need a 12 footer? Maybe a 20 footer?

Hey, guess what?  We even have a 35 footer.

We have you covered!!!

Support Post or Pendulum Support is required for arms 17 feet and over
  • Available in arm lengths 12 feet through 35 feet
  • ​Pendulum Support or Lift Barrier Receiving Tip Support Post required for arms 17 feet and over
  • Cable Truss Support is included on all arms 25 feet and over
  • Heavy Duty Steel Construction (all welding by AWS Certified Welders)
  • Round Aluminum Arm is Powder Coated White and has an 11" Red / 7" White DOT-C2 ORALIT(Reflexite) Reflective Conspicuity Tape on both sides/full length of the barrier arm. 10 Year Tape
  • 42" to top of barrier arm (custom sizing is available)
  • Standard Color is Safety Red.  Other color choices are available for an affordable "upgrade fee"
  • Surface Mounted (you may also choose an in ground mount for the same price)
  • 15" X 15" X 3/8" Base plates - pre drilled for surface fixing
  • Barrier Arms are affordable and easily replaced.  Just call, order and we will ship to you
  • Barrier Arms Longer than 12 feet - Arm Sections are Sleeved together with a solid Aluminum tube insert and secured with bolts, the sleeve is perfectly machined to fit snug so there is no movement within the sleeved arm sections and the barrier arm is the same diameter from end to end

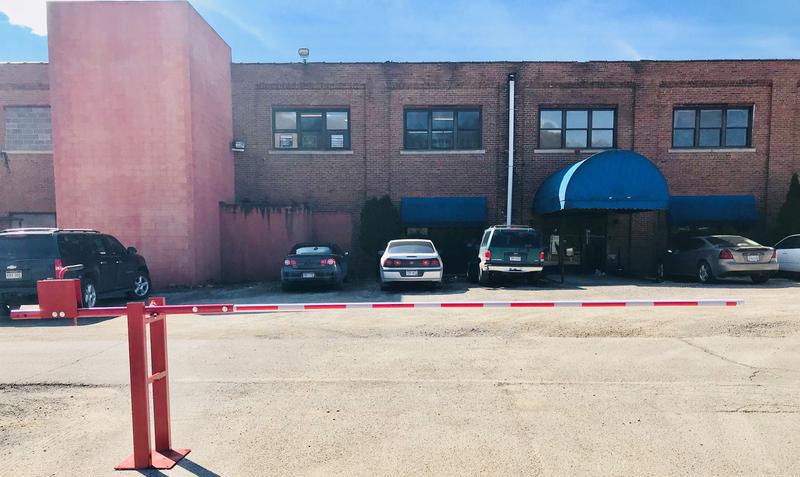

Manually Operated Rising Lift Barrier Gate Arm
MANUAL LIFT BARRIER GATE with ALUMINUM ARM
Our Pendulum Support Posts are adjustable.

Model SL-LB: Barrier Arm Length Available in 12', 16' & 20', 25',30' and 35' (we can also do custom sizing)
A pendulum support or receiving tip support post is required for arms 17 ft and over.
All Models 25 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable and custom made coupling clamp.  Cable Truss Support can also be added to a 20 ft unit if desired
We ship anywhere you need it to go.  USA or Worldwide!
Resting Post
or Receiver Post
A Pendulum Support Post or a Tip Receiving Post is Required on barrier arms 17 feet and over
A Pendulum Support Post or a Tip Receiving Post is Required on  barrier arms 17 feet and over
United States of America United Kingdom France Singapore Bangladesh Morocco Peru Cyprus Mexico Denmark Japan Netherlands Bulgaria Guatemala Grenada Malta Canada Dominican Republic Austria Belgium Poland Bahrain Norway Nicaragua Greece Italy Israel Honduras Costa Rica Latvia Estonia Panama Taiwan Ireland Slovenia Czech Republic El Salvador Lithuania Montserrat Cyprus Switzerland Korea, Republic of Spain Portugal Colombia Iceland Sierra Leone Malta Germany Hong Kong Saint Kitts and Nevis Finland Romania Mali Chile Nicaragua Australia Sweden Hungary Haiti Cambodia Slovakia Uganda
Model SL-LB (Secure Lane-Lift Barrier)
Model SL-LB-12,16,20,25,30 & 35

Solid machined aluminum insert sleeves connect arm sections together and then are bolted together with provided hardware through the pre drilled holes. .
Mounting Suggestions for the SL-LB Manual Lift Barrier Gate Arm
Please consult with an engineer for the best advice on mounting pads. As soil conditions are always different.
15" X 15" Wide Base
  ♦ Prevent vehicles from proceeding through an entry or exit.

  ♦No electricity source is required at the site.

  ♦Counter balanced technology eases the effort required for lifting the gate arm.

  ♦ Barrier Arm can be locked by padlock in the up or down positions for added security and safety.

  ♦Easy to install with the pre drilled mounting plate. Simply bolt to the concrete roadway or a concrete pad

  ♦In Ground version is also available.
YOUR SL-LB MANUAL LIFT BARRIER GATE ARM WILL ARRIVE WITH WEIGHT PLATES ATTACHED TO THE BASE UNIT THAT CORRESPOND WITH THE LENGTH OF BARRIER ARM ORDERED. IF YOU EVER WANT TO ADD A LONGER ARM, WE CAN SIMPLY SHIP ARM SECTIONS, CONNECTING SLEEVES, PENDULUM SUPPORTS, CABLE TRUSS SUPPORTS AND ADDITIONAL WEIGHT PLATES TO EASILY RECONFIGURE YOUR SL-LB UNIT INCREASING THE SIZE UP TO 35 FEET IN LENGTH
Surface mounted plate with 4 pre- drilled 5/8” diameter bolt holes. The mounting plate is 15” X 15” and 1” in from edges gives you center of the bolt holes.
Mount on to concrete or build a concrete pad and use four 1/2" diameter and 6" to 8" long concrete anchors. (j bolts, or LDT) Anchor bolts for mounting plate to concrete are not included
This base needs to be bolted on to a concrete surface or a concrete pad. Be sure that the concrete is cured before drilling the bolt holes in to it. Or pre- make the pad with wet set anchor bolts.
A 20” X 20” pad is usually a sufficient size and should be at least 8" thick. Reinforce using 8 #4 rebar evenly spaced in every direction. Make sure concrete is 2" or more over the rebar. Use a 3 to 4000 psi concrete.
You can also opt to use a drop-in anchor so that you can easily unbolt from the pad and move the unit to another pad and back again. Such as, CONFAST® Drop-in Anchors.



Or you can build portable concrete pads that can be moved around by a fork lift.
Please check with a structural engineer as this build idea is only a suggestion.
Portable pad:
Should be at least 36” X 36” and 8” thick or more.
The portable concrete pad would require 2 forklift slots. 2” high by 8” wide slots in the concrete pad that would accept the fork lift forks for moving the concrete pad.
4000 psi concrete should be used. 8 #4 rebar, 4 in each direction evenly spaced with a minimum of 2” of concrete over the rebar.
Wet set four ½” diameter J bolt concrete anchors or check with an expert about curing time before drilling anchors in to the concrete.

SL-LB Install Manual
SL-LB Install Manual
We also offer the Model 14000 by LiftMaster / Guardian Traffic
Support Post or Pendulum Support is required for arms 17 feet and over
